TP Top Chain
TP-Linear Movement

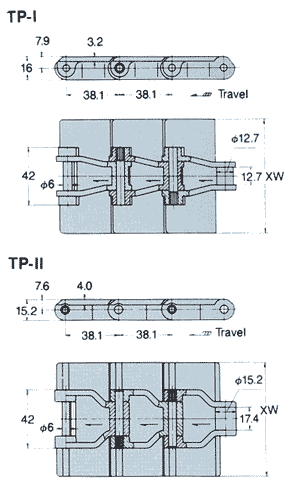

Tsubaki TP Top Chain consists of polyacetal resin top plates formed with each link and 18-8 stainless steel pins. The uniquely shaped top plate with TSUBAKI technology ensures high strength and maximum chain life. Tsubaki TP Top Chain can be easily assembled and disassembled. Maintenance is minimal.
| Chain No. | Slat Width XW |
Approx. Mass kg/m |
Type | Color |
| TP762 | 76.2 | 0.85 | I | Grey |
| TP826 | 82.6 | 0.85 | I | |
| TP1016 | 101.6 | 1.05 | II | |
| TP1143 | 114.3 | 1.1 | II | |
| TP1270 | 127.0 | 1.2 | II |
