RS Super Series Roller Chain
Super Series
The dimensions of this series are identical to those of ANSI standard roller chains. Link plates of the Super Series are designed to have a special shape. The pitch holes are critically formed to improve their allowable load by 25-30%. The pins are through hardened for greater shock load resistance.

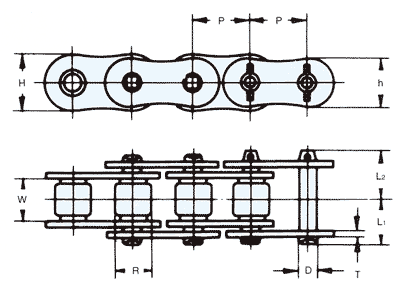

| Chain No. | Pitch P |
Roller Dia. R |
Width between Roller Link Plates W |
| SUPER80 | 25.40 | 15.88 | 15.88 |
| SUPER100 | 31.75 | 19.05 | 19.05 |
| SUPER120 | 38.10 | 22.23 | 25.40 |
| SUPER140 | 44.45 | 25.40 | 25.40 |
| SUPER160 | 50.80 | 28.58 | 31.75 |
| SUPER200 | 63.50 | 39.68 | 38.10 |
| SUPER240 | 76.20 | 47.63 | 47.63 |
| Chain No. | Link Plate | Pin | ||||
| Thickness T |
Height H |
Height h |
Dia. D |
From Pin Head to C.L. L1 |
From Pin end to C.L. L2 |
|
| SUPER80 | 3.2 | 24.1 | 20.8 | 7.94 | 16.25 | 19.25 |
| SUPER100 | 4.0 | 30.1 | 26.0 | 9.54 | 19.75 | 22.85 |
| SUPER120 | 4.8 | 36.2 | 31.2 | 11.11 | 24.9 | 28.9 |
| SUPER140 | 5.6 | 42.2 | 36.4 | 12.71 | 26.9 | 31.7 |
| SUPER160 | 6.4 | 48.2 | 41.6 | 14.29 | 31.85 | 36.85 |
| SUPER200 | 8.0 | 60.3 | 52.0 | 19.85 | 39.0 | 44.8 |
| SUPER240 | 9.5 | 72.4 | 62.4 | 23.81 | 47.9 | 55.5 |
| Chain No. | Average Tensile Strength kN {kgf} |
Maximum Allowable Load kN {kgf} |
Approx. Mass kg/m |
| SUPER80 | 85.3 {8,700} | 18.6 {1,900} | 2.81 |
| SUPER100 | 127 {13,000} | 30.4 {3,100} | 4.25 |
| SUPER120 | 186 {19,000} | 39.2 {4,000} | 6.30 |
| SUPER140 | 245 {25,000} | 53.9 {5,500} | 8.04 |
| SUPER160 | 314 {32,000} | 70.6 {7,200} | 10.79 |
| SUPER200 | 505 {51,500} | 94.1 {9,600} | 17.63 |
| SUPER240 | 735 {75,000} | 132.0 {13,500} | 25.63 |
Offset links are not available. Riveted type chains will be provided unless otherwise specified. Roll pin type chains will be provided upon request. Semi press-fitted type connecting links will be supplied.
