Outboard Roller Chain
Outboard roller construction makes for a highly compact conveyor. The ability to flex backwards adds to this by allowing easy layout on the return side to save space. Since a large number of rollers can be installed, a conveyor can be easily made where small objects are placed directly with no pallet. Quick starting is also possible by installing a plastic brake.
RF Type Outboard Roller Chains
Staggered installation
Crosswise installation
(Without brake)
| Chain No. | Pitch P |
Roller Dia. R |
Inner Link's Inner Width W |
||||
| Plastic Outboard Roller | Steel Outboard Roller | ||||||
| Standard | Lambda | Electro-conductive | Standard | Lambda | |||
| RF2040S-SR-P | RFC2040S-Λ-SR-P | RF2040S-SR-PE | RF2040S-SR | RFC2040S-Λ-SR | 25.40 | 7.92 | 7.95 |
| RF2050S-SR-P | RFC2050S-Λ-SR-P | RF2050S-SR-PE | RF2050S-SR | RFC2050S-Λ-SR | 31.75 | 10.16 | 9.53 |
| RF2060S-SR-P | RFC2060S-Λ-SR-P | RF2060S-SR-PE | RF2060S-SR | RFC2060S-Λ-SR | 38.10 | 11.91 | 12.70 |
| RF2080S-SR-P | - | - | RF2080S-SR | - | 50.80 | 15.88 | 15.88 |
| RF2100S-SR-P | - | - | RF2100S-SR | - | 63.50 | 19.05 | 19.05 |
| RF2040R-SR-P | RFC2040R-Λ-SR-P | RF2040R-SR-PE | RF2040R-SR | RFC2040R-Λ-SR | 25.40 | 15.88 | 7.95 |
| RF2050R-SR-P | RFC2050R-Λ-SR-P | RF2050R-SR-PE | RF2050R-SR | RFC2050R-Λ-SR | 31.75 | 19.05 | 9.53 |
| RF2060R-SR-P | RFC2060R-Λ-SR-P | RF2060R-SR-PE | RF2060R-SR | RFC2060R-Λ-SR | 38.10 | 22.23 | 12.70 |
| Chain No. | Link Plate | Pin | ||||||||
| Plastic Outboard Roller | Steel Outboard Roller | Thickness T |
Height H |
Dia. D |
L1 | L2 | L3 | |||
| Standard | Lambda | Electro-conductive | Standard | Lambda | ||||||
| RF2040S-SR-P | RFC2040S-Λ-SR-P | RF2040S-SR-PE | RF2040S-SR | RFC2040S-Λ-SR | 1.5 | 12.0 | 3.97 | 9.65 | 17.9 | 19.3 |
| RF2050S-SR-P | RFC2050S-Λ-SR-P | RF2050S-SR-PE | RF2050S-SR | RFC2050S-Λ-SR | 2.0 | 15.0 | 5.09 | 11.9 | 21.6 | 23.2 |
| RF2060S-SR-P | RFC2060S-Λ-SR-P | RF2060S-SR-PE | RF2060S-SR | RFC2060S-Λ-SR | 3.2 | 17.2 | 5.96 | 16.95 | 29.65 | 32.05 |
| RF2080S-SR-P | - | - | RF2080S-SR | - | 4.0 | 23.0 | 7.94 | 20.95 | 36.65 | 39.65 |
| RF2100S-SR-P | - | - | RF2100S-SR | - | 4.8 | 28.6 | 9.54 | 24.5 | 44.2 | 47.3 |
| RF2040R-SR-P | RFC2040R-Λ-SR-P | RF2040R-SR-PE | RF2040R-SR | RFC2040R-Λ-SR | 1.5 | 12.0 | 3.97 | 9.65 | 23.1 | 24.5 |
| RF2050R-SR-P | RFC2050R-Λ-SR-P | RF2050R-SR-PE | RF2050R-SR | RFC2050R-Λ-SR | 2.0 | 15.0 | 5.09 | 11.9 | 25.3 | 27.0 |
| RF2060R-SR-P | RFC2060R-Λ-SR-P | RF2060R-SR-PE | RF2060R-SR | RFC2060R-Λ-SR | 3.2 | 17.2 | 5.96 | 16.95 | 29.65 | 32.05 |
| Chain No. | Outboard Roller | Approx. Mass kg/m |
|||||||
| Plastic Outboard Roller | Steel Outboard Roller | DS | HS | Steel chain roller | Plastic chain roller | ||||
| Standard | Lambda | Electro-conductive | Standard | Lambda | Plastic | Steel | Plastic | ||
| RF2040S-SR-P | RFC2040S-Λ-SR-P | RF2040S-SR-PE | RF2040S-SR | RFC2040S-Λ-SR | 15.88 | 7.8 | 0.66 | 1.02 | - |
| RF2050S-SR-P | RFC2050S-Λ-SR-P | RF2050S-SR-PE | RF2050S-SR | RFC2050S-Λ-SR | 19.05 | 9.4 | 1.03 | 1.53 | - |
| RF2060S-SR-P | RFC2060S-Λ-SR-P | RF2060S-SR-PE | RF2060S-SR | RFC2060S-Λ-SR | 22.23 | 12.6 | 1.80 | 2.56 | - |
| RF2080S-SR-P | - | - | RF2080S-SR | - | 28.58 | 15.8 | 3.12 | 4.30 | - |
| RF2100S-SR-P | - | - | RF2100S-SR | - | 39.69 | 19 | 4.77 | 7.00 | - |
| RF2040R-SR-P | RFC2040R-Λ-SR-P | RF2040R-SR-PE | RF2040R-SR | RFC2040R-Λ-SR | 23 | 13 | 1.24 | - | 0.89 |
| RF2050R-SR-P | RFC2050R-Λ-SR-P | RF2050R-SR-PE | RF2050R-SR | RFC2050R-Λ-SR | 27 | 13 | 1.70 | - | 1.23 |
| RF2060R-SR-P | RFC2060R-Λ-SR-P | RF2060R-SR-PE | RF2060R-SR | RFC2060R-Λ-SR | 30 | 12.6 | 2.64 | - | 1.93 |
Note:
Weights listed are for staggered outboard roller installation at every link or crosswise outboard roller installation at every second link.
All connecting links are cottered type.
RF Type Outboard Roller Chains (With brake)
| Chain No. | Pitch P |
Roller Dia. R |
Inner Link's Inner Width W |
||
| Plastic Outboard Roller | |||||
| Standard | Lambda | Electro-conductive | |||
| RF2040S-SR-PB | RFC2040S-Λ-SR-PB | RF2040S-SR-PBE | 25.40 | 7.92 | 7.95 |
| RF2050S-SR-PB | RFC2050S-Λ-SR-PB | RF2050S-SR-PBE | 31.75 | 10.16 | 9.53 |
| RF2060S-SR-PB | RFC2060S-Λ-SR-PB | RF2060S-SR-PBE | 38.10 | 11.91 | 12.70 |
| RF2040R-SR-PB | RFC2040R-Λ-SR-PB | RF2040R-SR-PBE | 25.40 | 15.88 | 7.95 |
| RF2050R-SR-PB | RFC2050R-Λ-SR-PB | RF2050R-SR-PBE | 31.75 | 19.05 | 9.53 |
| RF2060R-SR-PB | RFC2060R-Λ-SR-PB | RF2060R-SR-PBE | 38.10 | 22.23 | 12.70 |
| Chain No. | Link Plate | Pin | ||||||
| Plastic Outboard Roller | Thickness T |
Height H |
Dia. D |
L1 | L2 | L3 | ||
| Standard | Lambda | Electro-conductive | ||||||
| RF2040S-SR-PB | RFC2040S-Λ-SR-PB | RF2040S-SR-PBE | 1.5 | 12.0 | 3.97 | 9.65 | 17.9 | 19.3 |
| RF2050S-SR-PB | RFC2050S-Λ-SR-PB | RF2050S-SR-PBE | 2.0 | 15.0 | 5.09 | 11.90 | 21.6 | 23.2 |
| RF2060S-SR-PB | RFC2060S-Λ-SR-PB | RF2060S-SR-PBE | 3.2 | 17.2 | 5.96 | 16.95 | 29.65 | 32.05 |
| RF2040R-SR-PB | RFC2040R-Λ-SR-PB | RF2040R-SR-PBE | 1.5 | 12.0 | 3.97 | 9.65 | 23.1 | 24.5 |
| RF2050R-SR-PB | RFC2050R-Λ-SR-PB | RF2050R-SR-PBE | 2.0 | 15.0 | 5.09 | 11.90 | 25.3 | 27.0 |
| RF2060R-SR-PB | RFC2060R-Λ-SR-PB | RF2060R-SR-PBE | 3.2 | 17.2 | 5.96 | 16.95 | 29.65 | 32.05 |
| Chain No. | Outboard Roller | Approx. Mass kg/m |
|||||
| Plastic Outboard Roller | DS | HS | Steel chain roller | Plastic chain roller | |||
| Standard | Lambda | Electro-conductive | Plastic | Steel | Plastic | ||
| RF2040S-SR-PB | RFC2040S-Λ-SR-PB | RF2040S-SR-PBE | 15.88 | 7.8 | 0.66 | 1.02 | - |
| RF2050S-SR-PB | RFC2050S-Λ-SR-PB | RF2050S-SR-PBE | 19.05 | 9.4 | 1.03 | 1.53 | - |
| RF2060S-SR-PB | RFC2060S-Λ-SR-PB | RF2060S-SR-PBE | 22.23 | 12.6 | 1.80 | 2.56 | - |
| RF2040R-SR-PB | RFC2040R-Λ-SR-PB | RF2040R-SR-PBE | 23 | 13 | 1.24 | - | 0.89 |
| RF2050R-SR-PB | RFC2050R-Λ-SR-PB | RF2050R-SR-PBE | 27 | 13 | 1.70 | - | 1.23 |
| RF2060R-SR-PB | RFC2060R-Λ-SR-PB | RF2060R-SR-PBE | 30 | 12.6 | 2.64 | - | 1.93 |
Note:
Weights listed are for staggered outboard roller installation at every link or crosswise outboard roller installation at every second link.
All connecting links are cottered type.
RS Type Outboard Roller Chains

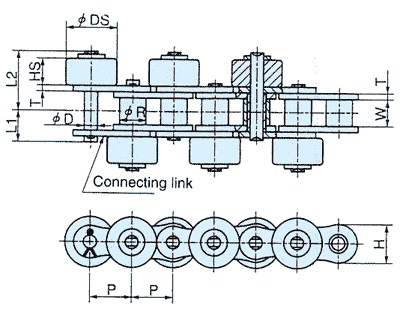

Staggered installation

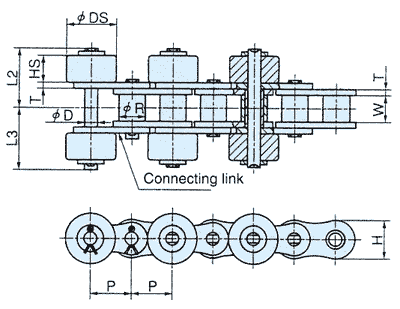

Crosswise installation
(Without brake)
| Chain No. | Pitch P |
Roller Dia. R |
Inner Link's Inner Width W |
||||
| Plastic Outboard Roller | Steel Outboard Roller | ||||||
| Standard | Lambda | Electro-conductive | Standard | Lambda | |||
| RS40-SR-P | RSC40-Λ-SR-P | RS40-SR-PE | RS40-SR | RSC40-Λ-SR | 12.70 | 7.92 | 7.95 |
| RS50-SR-P | RSC50-Λ-SR-P | RS50-SR-PE | RS50-SR | RSC50-Λ-SR | 15.875 | 10.16 | 9.53 |
| RS60-SR-P | RSC60-Λ-SR-P | RS60-SR-PE | RS60-SR | RSC60-Λ-SR | 19.05 | 11.91 | 12.70 |
| RS80-SR-P | - | - | RS80-SR | - | 25.40 | 15.88 | 15.88 |
| RS100-SR-P | - | - | RS100-SR | - | 31.75 | 19.05 | 19.05 |
| Chain No. | Link Plate | Pin | ||||||||
| Plastic Outboard Roller | Steel Outboard Roller | Thickness T |
Height H |
Dia. D |
L1 | L2 | L3 | |||
| Standard | Lambda | Electro-conductive | Standard | Lambda | ||||||
| RS40-SR-P | RSC40-Λ-SR-P | RS40-SR-PE | RS40-SR | RSC40-Λ-SR | 1.5 | 12.0 | 3.97 | 9.65 | 17.9 | 19.3 |
| RS50-SR-P | RSC50-Λ-SR-P | RS50-SR-PE | RS50-SR | RSC50-Λ-SR | 2.0 | 15.0 | 5.09 | 11.9 | 21.6 | 23.2 |
| RS60-SR-P | RSC60-Λ-SR-P | RS60-SR-PE | RS60-SR | RSC60-Λ-SR | 2.4 | 18.1 | 5.96 | 15.25 | 27.95 | 30.35 |
| RS80-SR-P | - | - | RS80-SR | - | 3.2 | 24.1 | 7.94 | 19.25 | 35.05 | 37.95 |
| RS100-SR-P | - | - | RS100-SR | - | 4.0 | 30.1 | 9.54 | 22.85 | 42.55 | 45.65 |
| Chain No. | Outboard Roller | Approx. Mass kg/m |
||||||
| Plastic Outboard Roller | Steel Outboard Roller | DS | HS | Plastic Outboard Roller | Steel Outboard Roller | |||
| Standard | Lambda | Electro-conductive | Standard | Lambda | ||||
| RS40-SR-P | RSC40-Λ-SR-P | RS40-SR-PE | RS40-SR | RSC40-Λ-SR | 15.88 | 7.8 | 0.94 | 1.67 |
| RS50-SR-P | RSC50-Λ-SR-P | RS50-SR-PE | RS50-SR | RSC50-Λ-SR | 19.05 | 9.4 | 1.42 | 2.42 |
| RS60-SR-P | RSC60-Λ-SR-P | RS60-SR-PE | RS60-SR | RSC60-Λ-SR | 22.23 | 12.6 | 2.11 | 3.63 |
| RS80-SR-P | - | - | RS80-SR | - | 28.58 | 15.8 | 3.57 | 5.92 |
| RS100-SR-P | - | - | RS100-SR | - | 39.69 | 19.0 | 5.56 | 10.02 |
Note:
Weights listed are for staggered outboard roller installation at every link or crosswise outboard roller installation at every second link.
All connecting links are cottered type.
RS Type Outboard Roller Chains (With brake)
| Chain No. | Pitch P |
Roller Dia. R |
Inner Link's Inner Width W |
||
| Plastic Outboard Roller | |||||
| Standard | Lambda | Electro-conductive | |||
| RS40-SR-PB | RSC40-Λ-SR-PB | RS40-SR-PBE | 12.70 | 7.92 | 7.95 |
| RS50-SR-PB | RSC50-Λ-SR-PB | RS50-SR-PBE | 15.875 | 10.16 | 9.53 |
| RS60-SR-PB | RSC60-Λ-SR-PB | RS60-SR-PBE | 19.05 | 11.91 | 12.70 |
| Chain No. | Link Plate | Pin | ||||||
| Plastic Outboard Roller | Thickness T |
Height H |
Dia. D |
L1 | L2 | L3 | ||
| Standard | Lambda | Electro-conductive | ||||||
RS40-SR-PB |
RSC40-Λ-SR-PB |
RS40-SR-PBE |
1.5 |
12.0 |
3.97 |
9.65 |
17.9 |
19.3 |
RS50-SR-PB |
RSC50-Λ-SR-PB |
RS50-SR-PBE |
2.0 |
15.0 |
5.09 |
11.9 |
21.6 |
23.2 |
RS60-SR-PB |
RSC60-Λ-SR-PB |
RS60-SR-PBE |
2.4 |
18.1 |
5.96 |
15.25 |
27.95 |
30.35 |
| Chain No. | Outboard Roller | Approx. Mass kg/m |
||||
| Plastic Outboard Roller | DS | HS | Plastic Outboard Roller | Steel Outboard Roller | ||
| Standard | Lambda | Electro-conductive | ||||
| RS40-SR-PB | RSC40-Λ-SR-PB | RS40-SR-PBE | 15.88 | 7.8 | 0.94 | 1.67 |
| RS50-SR-PB | RSC50-Λ-SR-PB | RS50-SR-PBE | 19.05 | 9.4 | 1.42 | 2.42 |
| RS60-SR-PB | RSC60-Λ-SR-PB | RS60-SR-PBE | 22.23 | 12.6 | 2.11 | 3.63 |
Note:
Weights listed are for staggered outboard roller installation at every link or crosswise outboard roller installation at every second link.
All connecting links are cottered type.
