Multi-Free-Flow Chain
Revolutionary Tsubaki Double Plus Chains are Drawing Lots Of Attention
- Quiet
- Safe
- Quick Start Up
- Easy Installation
- Wide Selection

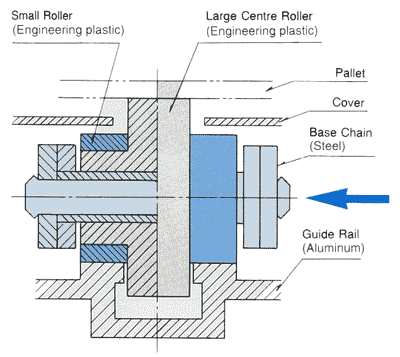

How Tsubaki Double Plus Chain works
- When conveying
Friction between the large center roller and the small roller allows them to rotate together in unison. The difference in diameter of the two rollers causes the speed of the conveyed object to be 2.5 times the speed of the chain - When accumulating
The large roller then rotates freely in the opposite direction of the small roller allowing conveyed objects to accumulate. We call this free flow conveying.
| Chain No. | Pitch P |
Roller | Width | |||
| Engineering Plastic Roller | Steel Roller | R | R1 | W1 | W2 | |
| RF2030VRP | RF2030VR | 19.05 | 11.91 | 18.3 | 8.0 | 4.0 |
| RF2040VRP | RF2040VR | 25.40 | 15.88 | 24.6 | 10.3 | 5.7 |
| RF2050VRP | RF2050VR | 31.75 | 19.05 | 30.6 | 13.0 | 7.1 |
| RF2060VRP | RF2060VR | 38.10 | 22.23 | 36.6 | 15.5 | 8.5 |
| RF2080VRP | - | 50.80 | 28.58 | 48.0 | 20.0 | 15.0 |
| Chain No. | Link Plate | Pin | Approx. Mass kg/m | ||||||
| Engineering Plastic Roller | Steel Roller | t | T | H | D | L1 | L2 | Engineering Plastic Roller | Steel Roller |
| RF2030VRP | RF2030VR | 1.5 | 1.5 | 9.0 | 3.59 (3.00) | 12.05 | 13.25 | 0.6 | 1.4 |
| RF2040VRP | RF2040VR | 2.0 | 1.5 | 12.0 | 3.97 | 15.8 | 17.0 | 1.0 | 2.5 |
| RF2050VRP | RF2050VR | 2.4 | 2.0 | 15.0 | 5.09 | 19.55 | 21.15 | 1.4 | 3.7 |
| RF2060VRP | RF2060VR | 3.2 | 3.2 | 17.2 | 5.96 | 24.5 | 26.4 | 2.0 | 5.6 |
| RF2080VRP | - | 4.0 | 4.0 | 23.0 | 7.94 | 35.8 | 38.0 | 3.9 | - |
