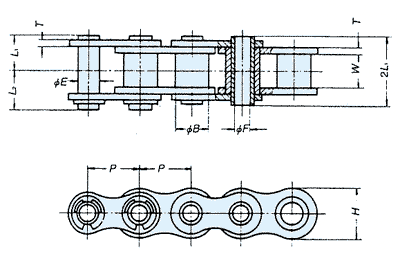

Hollow Pin Chain Λ Lambda
| Chain No. | Pitch P |
Width between Roller Link Plates W |
Bushing Dia. B |
RSC40HP-Λ |
12.70 |
7.95 |
7.92 |
RSC50HP-Λ |
15.875 |
9.53 |
10.16 |
RSC60HP-Λ |
19.05 |
12.70 |
11.91 |
RSC80HP-Λ |
25.40 |
15.88 |
15.88 |
RSC100HP-Λ |
- |
- |
- |
| Chain No. | Pin | Link Plate | ||||
| Outer Dia. E |
Inner Dia. F(min) |
L1 | L2 | Thickness T |
Height H |
|
| RSC40HP-Λ | 5.68 | 4.00 | 8.00 | 9.50 | 1.5 | 12.0 |
| RSC50HP-Λ | 7.22 | 5.12 | 10.05 | 11.65 | 2.0 | 15.0 |
| RSC60HP-Λ | 8.38 | 5.99 | 12.55 | 14.25 | 2.4 | 18.1 |
| RSC80HP-Λ | 11.375 | 8.02 | 16.25 | 17.80 | 3.2 | 24.1 |
| RSC100HP-Λ | - | - | - | - | - | - |
| Chain No. | Average Tensile Strength kN {kgf} |
Maximum Allowable Load kN {kgf} |
Approx. Mass kg/m |
| RSC40HP-Λ | 10.8 {1,100} | 1.47 {150} | 0.53 |
| RSC50HP-Λ | 19.6 {2,000} | 2.55 {260} | 0.86 |
| RSC60HP-Λ | 26.5 {2,700} | 3.43 {350} | 1.27 |
| RSC80HP-Λ | 48.1 {4,900} | 6.18 {630} | 2.15 |
| RSC100HP-Λ | - | - | - |
RF type is also available. As dimensions are different please consult Tsubaki.
- Operating temperature: -10ºC ~ +150ºC
- Sprocket
- RS Type: Standard RS Roller Chain sprocket can be used.
- RF Type: Double Pitch Chain sprocket can be used. RS sprocket can be used with S Roller type when there are more than 30 sprocket teeth.
